No Limit Chassis build for BigRob (16th Mar 11 at 12:32am UTC)
So i'm going to try and keep this simple and try and put up alot of pics as progress is made. As of right now it is already a roller and so i have a few pics to post up. I will also list my parts that i have aquired so far.....

LQ4 6 liter 2005 Denali, 700r4 with alot of goodies (smurf built), atlas 4.3 32 spline, my old chevy 60 front axle with ARB and 5:13's and PSC double ended ram with bluetorch high steer arms courtesy of T-Carp, 14 bolt rear spooled by Trout, 5:13's and disc brakes, raceline monster 17x9 and 42" irok's slightly used from Phil at No Limit, my lower links are built by Trout (they were going to be for his death chassis), 2 of them are 2" .250 Chromoly with 1 1/4 heims, and the other 2 are 2" .250 DOM with 1 1/4 heims, uppers are all 1.75 .120 DOM with 7/8 heims, shocks are 2.5" x 14" Sway a way's, 2 - 4" rad flo bumps and 2 - 4" sway a way bumps, my chassis is from No Limit Fab in Grassvalley as are my front and rear truss', diff covers, and link brackets. The rocker bars and front and rear bumpers are .188 DOM so i can smash..... Smiley

I was originally planning on all these parts in the jeep chassis (except with a TBI 350) but Phil called with an offer to get me in one of his chassis' for a sweet price, well i asked him if i could think about it and eventually called him and said i better stick to my original plan. {Rolleyes} Well that lasted about a few weeks and on my birthday at a new years/ b-day party at Ian's i was asked why the F did i pass that deal up...lol i immediatly sent Phil a text asking if the deal was still good and he called the next day and here we are... Smiley I have these pics that came from my phone so i hope they are ok and not too big.

this is where he started ..





Big fish in an even bigger pond
BigRob
Zombie Member
*

[Avatar]

Build it Whiskey Proof!

Posts: 2,463
Status: Offline
Gender: Male
Location: Gods Country......Orangevale
Joined:

pm

Reputation: 1%

Re: No Limit Chassis build for BigRob (16th Mar 11 at 12:34am UTC)




Big fish in an even bigger pond
mikeb
Zombie Member
*

Posts: 1,016
Status: Offline
Gender: Male
Location: Hangtown
Joined:

pm

Reputation: 111%

Re: No Limit Chassis build for BigRob (16th Mar 11 at 2:48am UTC)
Wow nice parts list. Cannt wait to see you back out on the trail

God gave me a superior brain over the rest of the animals, so I could exploit the planet.
lil-bronc
Zombie Member
*

[Avatar]

Posts: 754
Status: Offline
Gender: Male
Location: Folsom
Joined:

pm

Reputation: 0%

Re: No Limit Chassis build for BigRob (16th Mar 11 at 3:28am UTC)
Nice.. can't wait to see the progress pics and on the trail.

Live accross the river and still, Trying to keep up with the Jones'.

"So much of what is best in us, is bound up in our love of family. That it remains the measure of our stability because it measures our sense of loyalty. "
HOGAN
Official Zombie Supporter

[Avatar]

Black Jeep Metal Mafia Member

Posts: 2,090
Status: Offline
Gender: Male
Location: OV 916 Till We Die!
Joined:

pm

Reputation: 35%

Re: No Limit Chassis build for BigRob (16th Mar 11 at 4:49am UTC)
Hell yeah!!

Little 04 Rubicon, 5.13 gears, Home brew Highline on 36's Beat to hell and almost paid off... Happiness is Rock Crawling in your "Daily Driver"..... kinda.


Tellico Rally Post #555

Sponsored by HENGL
Team HENGL your face!
BigRob
Zombie Member
*

[Avatar]

Build it Whiskey Proof!

Posts: 2,463
Status: Offline
Gender: Male
Location: Gods Country......Orangevale
Joined:

pm

Reputation: 1%

Re: No Limit Chassis build for BigRob (16th Mar 11 at 5:45am UTC)

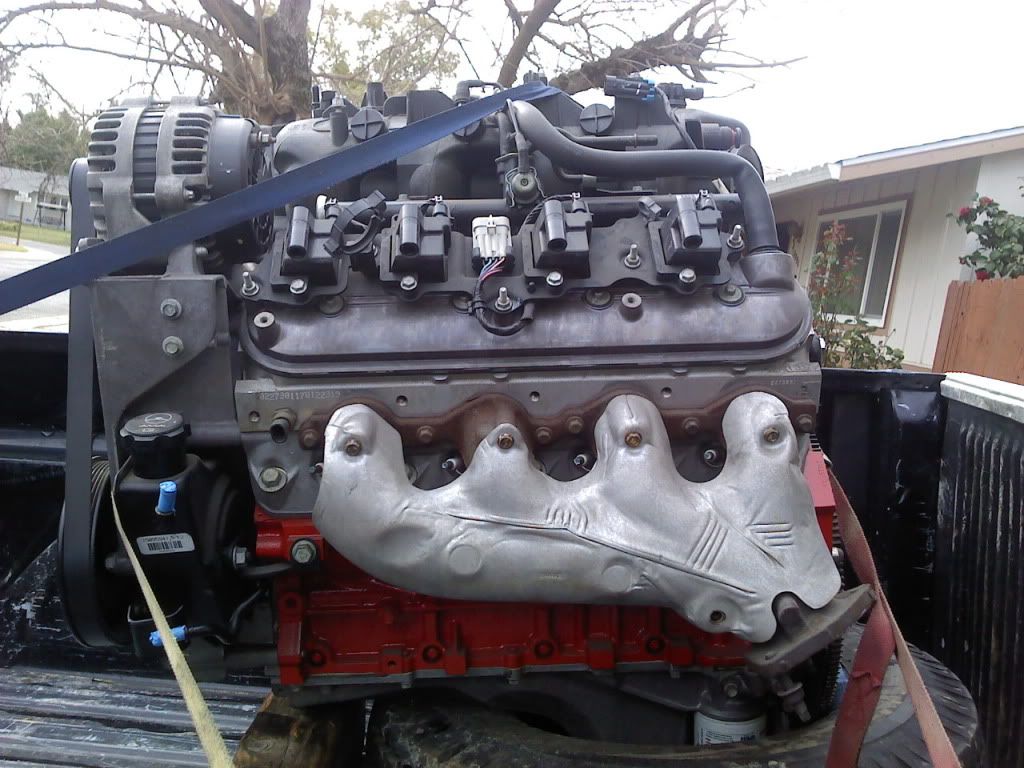

So tonight i drove all over to get a pencil camera and check the pistons via spark plug hole and it turns out i have an LQ4 not an LQ9 so i check the other motor offered to me as well it is an LQ4 so no biggie i am still excited. Then i received the computer for said motor and it has the vehicle info on it and turns out its from a 2005 Denali.. thats cool only 62,000 miles on it.

I also got to go sit in the rig and feel it out, i went 60" wide which is the width of the CJ hood and its perfect for me and comfy as a trail rig since that is goal #1 with this build. {Grin}

Big fish in an even bigger pond
BigRob
Zombie Member
*

[Avatar]

Build it Whiskey Proof!

Posts: 2,463
Status: Offline
Gender: Male
Location: Gods Country......Orangevale
Joined:

pm

Reputation: 1%

Re: No Limit Chassis build for BigRob (16th Mar 11 at 5:50am UTC)





Big fish in an even bigger pond
BigRob
Zombie Member
*

[Avatar]

Build it Whiskey Proof!

Posts: 2,463
Status: Offline
Gender: Male
Location: Gods Country......Orangevale
Joined:

pm

Reputation: 1%

Re: No Limit Chassis build for BigRob (16th Mar 11 at 5:52am UTC)




Big fish in an even bigger pond
HOGAN
Official Zombie Supporter

[Avatar]

Black Jeep Metal Mafia Member

Posts: 2,090
Status: Offline
Gender: Male
Location: OV 916 Till We Die!
Joined:

pm

Reputation: 35%

Re: No Limit Chassis build for BigRob (16th Mar 11 at 3:34pm UTC)
No big deal about the Motor its the same as the LQ9 just has a little bit lower compression of 9.4:1 rather than the10:1 of the LQ9. Being that your motor is a 05 you have aluminum heads, the 99-00 LQ4's had cast iron. Maybe goodby will give you a good deal on his blower, lol.

Little 04 Rubicon, 5.13 gears, Home brew Highline on 36's Beat to hell and almost paid off... Happiness is Rock Crawling in your "Daily Driver"..... kinda.


Tellico Rally Post #555

Sponsored by HENGL
Team HENGL your face!
bigbadjeepster
Zombie Member
*

[Avatar]

how about a warm glass of shut the hell up?!

Posts: 1,864
Status: Offline
Gender: Male
Location: Woodland
Joined:

pm

Reputation: -1%

Re: No Limit Chassis build for BigRob (16th Mar 11 at 4:09pm UTC)
bueno!

cheeks
69 commando with some goodies
70 commando with more goodies
matt
Zombie Member
*

[Avatar]

Posts: 416
Status: Offline
Gender: Male
Location: Rancho Cordova
Joined:

pm

Reputation: 0%

Re: No Limit Chassis build for BigRob (16th Mar 11 at 4:50pm UTC)
Very nice!

1983 Toyota, tube bed, dual cases with 4.7, linked f/r with 16" fox coilovers, arb dana 44 front, welded 12 bolt rear, 39" Krawlers, 115" wheelbase
sarge
Official Zombie Supporter

Posts: 283
Status: Offline
Gender: Male
Location: sommerset
Joined:

pm

Reputation: 1%

Re: No Limit Chassis build for BigRob (16th Mar 11 at 5:08pm UTC)
looking goood,,, must be tax time

79cj7 soa's built fw44 built fw9"rear 488's arb's 350tbi sm465/toyota 5-1, 228-1 104"sitting on 42's
Donkey
Official Zombie Supporter

[Avatar]

Posts: 329
Status: Offline
Location: Galt
Joined:

pm

Reputation: 0%

Re: No Limit Chassis build for BigRob (16th Mar 11 at 6:02pm UTC)
Nice Biggy!
BigRob
Zombie Member
*

[Avatar]

Build it Whiskey Proof!

Posts: 2,463
Status: Offline
Gender: Male
Location: Gods Country......Orangevale
Joined:

pm

Reputation: 1%

Re: No Limit Chassis build for BigRob (17th Mar 11 at 3:02am UTC)

looking goood,,, must be tax time


negative i haven't even began to do the taxes yet..... {Grin} hopefully i get some money back Smiley

Big fish in an even bigger pond
BigRob
Zombie Member
*

[Avatar]

Build it Whiskey Proof!

Posts: 2,463
Status: Offline
Gender: Male
Location: Gods Country......Orangevale
Joined:

pm

Reputation: 1%

Re: No Limit Chassis build for BigRob (17th Mar 11 at 3:10am UTC)
Hogan i am reading an engine builders book for these Gen III motors and they list the ls6 and lq9/lq4 heads as the heads to run. it says the lq heads where derived from the ls6 heads with the same port size but 8 cc bigger chambers so they are ideal for boosted engines and the ls6 for naturally aspirated engines. useless knowledge i know...... {Grin}
i thought i would tell you it also says that the early cast iron heads from these motors are less than desirable...lol

Big fish in an even bigger pond
